UBE Machinery's Injection Molding
Next Generation Multi-Color Injection Molding
Ultra-Compact Injection Unit “Putit Injection”
This is an ultra-compact injection unit with excellent handling characteristics that does not require major specification changes for integrated resin molding or multi-component molding. By taking advantage of its ultra-compact size, easy installation on existing production machines, and the arrangement of multiple units of “Putit Injection” around the mold, it is possible to realize a multi-material injection molding machine at a reasonable price, which was previously impossible due to space limitations.
By docking UBE Machinery's “Putit Injection” to your existing injection molding machine, co-injection (multi-color molding machine) can be easily realized.
“Putit Injection” is a registered trademark of UBE Machinery in Japan.
- Ultra-compact electric-driven injection unit (injection capacity 50-250cc)
- Directly mounted on the mold for small-quantity, multi-color molding
![Putit Injection](image/petit/mv.png)

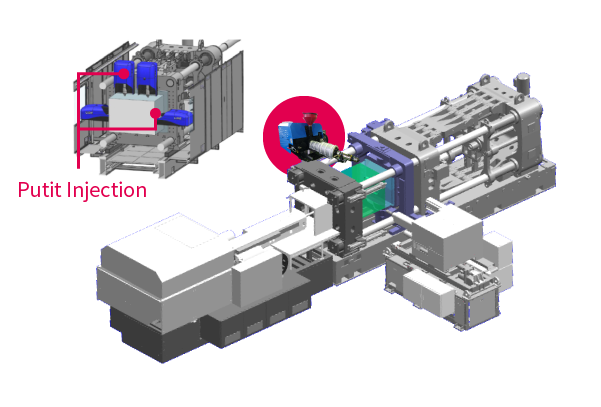

Mounted on the mold for injection molding machine
![Mounted on the mold for injection molding machine](image/petit/Petit-01.png)
- Standard injection molding machine turns into a multi-color molding machine
- More versatile and space-saving than two-material injection molding machines
Mounted on the mold for vertical press machine
![Mounted on the mold for vertical press machine](image/petit/Petit-02.png)
- Capable of molding composite materials and integrally molding parts
- Integral molding with thermosetting resins and metals(Press molding, Insert molding)
(Example)Mounted on the mold for horizontal injection molding machine
![Mounted on the mold for horizontal injection molding machine](image/petit/Petit-03.png)
(Example)Mounted on the mold for vertical press machine
![Mounted on the mold for vertical press machine](image/petit/Petit-04.png)
Molding Examples
Differential material molded product
![Stitches are injection-filled by “Putit Injection”](image/petit/Petit-05.png)
“Functional Materials + Injection Molding”: Hybrid Molding
![Natural material + “Putit Injection” (Black frame)](image/petit/Petit-06.png)

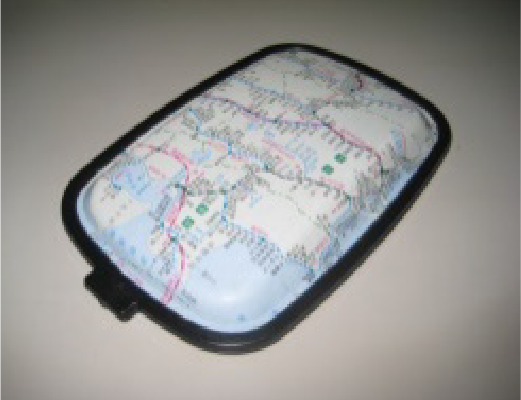

![Reinforced fiber + “Putit Injection” (Black frame)](image/petit/Petit-07.png)
![Metal insert + “Putit Injection” (Blue frame)](image/petit/Petit-08.png)
