UF Series
Toggle type all-electric injection molding machine
650～3500ton
Making electric injection molding machines more accessible while maintaining our commitment to quality and productivity!
UF Series / Toggle type all-electric injection molding machine
UBE Machinery, the world's pioneer in all-electric large-sized molding machines, has developed this global standard machine based on the concept of "Making electric molding machines more accessible!". While maintaining our commitment to quality and productivity, we have thoroughly pursued ease of use, operation and setup.
<Features>
- Wide and high rigidity platens "TAF CLAMP" are adopted.
- Equipped with "e-HUMMA," a controller developed for ease of use with "user-friendly" as its keyword.
- Capable of high value-added molding such as "DIEPREST" UBE's original technology.
Product Features
- Ball screws with reduced grease consumption.
- "What doesn't move is strong! Lighten the weight of things that move!" Highly rigid, mold clamping device: "TAF clamp"
- -Easy & simple operation controller: "e-HUMMA"
- Power regenerative servo system.
- Accurate and consistent injection process control :"Flex Servo"
Ball screws with reduced grease consumption
Improved ball screw seals reduce grease volume by 90% from conventional design. The improved design also increases durability to enhance ball screw life. Grease distribution control reduces both grease consumption and improves ball screw wear. The new design offers a cleaner plant environment along with the reduction of grease usage.
"What doesn't move is strong! Lighten the weight of things that move!" Highly rigid, mold clamping device "TAF clamp"
If the platen or machine base is deformed during molding, the molded product will be affected and the mold will be damaged. To solve this problem, the UF series uses the highly rigid clamping unit "TAF Clamp" as standard equipment, which enables stable molding without distortion or deformation of the molded product, and is also effective for precision molding.
Easy & simple operation controller : e-HUMMA
The "e-HUMMA" control unit realizes both high functionality and high performance of electric injection molding machines and user-friendliness in terms of operability and visibility with the keyword "user-friendly". No need to adjust detailed parameters, and easy setup and operation that does not rely on experience or intuition, anyone can easily realize highly responsive and highly accurate injection control.
[Compact operation panel]
The fusion of a large color LCD touch panel, pictorial membrane sheet, and hard switches has realized improved operability, visibility, and safety.
[Intuitive one-shot icon]
The intuitive one-shot icon is used to instantly open the screen you want to see.
[Control system]
The control system has a high degree of freedom and expandability, allowing for easy system modification and addition of options.
[CAE analysis software: Mold-Link linkage]
*Mold-Link and hardware for Mold-Link operation are optional.
Seamless linkage of molding data between UF series and UIS CAE link system: Mold-Link is possible using a dedicated format.
Power regenerative servo system
Power consumption per machine can be reduced by regenerating the power generated during servo motor deceleration and using it for heaters and other devices.

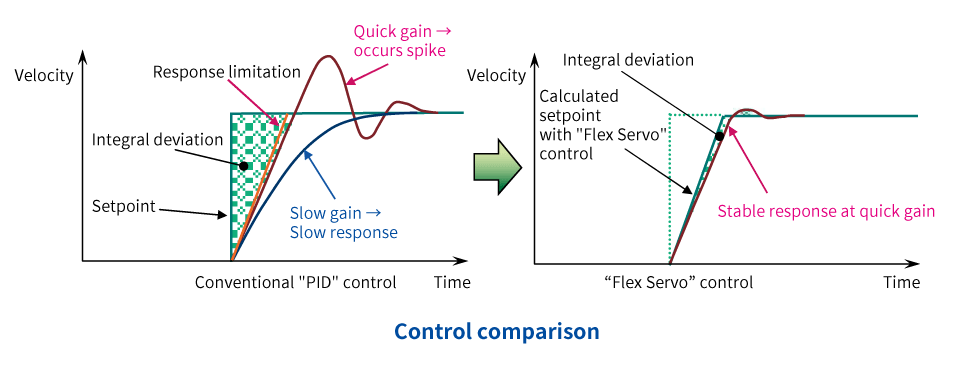

Accurate and consistent injection process control "Flex Servo"
Advanced control logic, "Flex Servo" control, simultaneously controls injection speed and pressure, and consistently responds to rapid pressure changes during injection. Highly responsive and accurate injection control eliminates the need for adjustments based on experience and intuition.
